Indoor Unit Suspension Kit
The Airsling Indoor Unit Suspension Kit is our game-changing solution to save time and effort in a hot roof space. No more measuring and cutting of threaded rod or spinning nuts to adjust height!
Simply fasten each cable to the air conditioning unit with the hardware provided, then loop each cable over roof timber and into the grippers, then just pull each cable to lift the unit to the desired height. It’s that easy!
The looping grippers support up to 180kg each and make adjusting the height easy — just push in the ferrules and adjust cable length as required. Made from brass and aluminium with a nickel suface finish, these kits are designed to resist corrosion and will outlast any system.
Available in single packs, 10-packs and 100-packs. Save more, buy bulk!
-
![]()
Ducted indoor
air conditioner hanging kit
Drain tray kit sold separately -
![]()

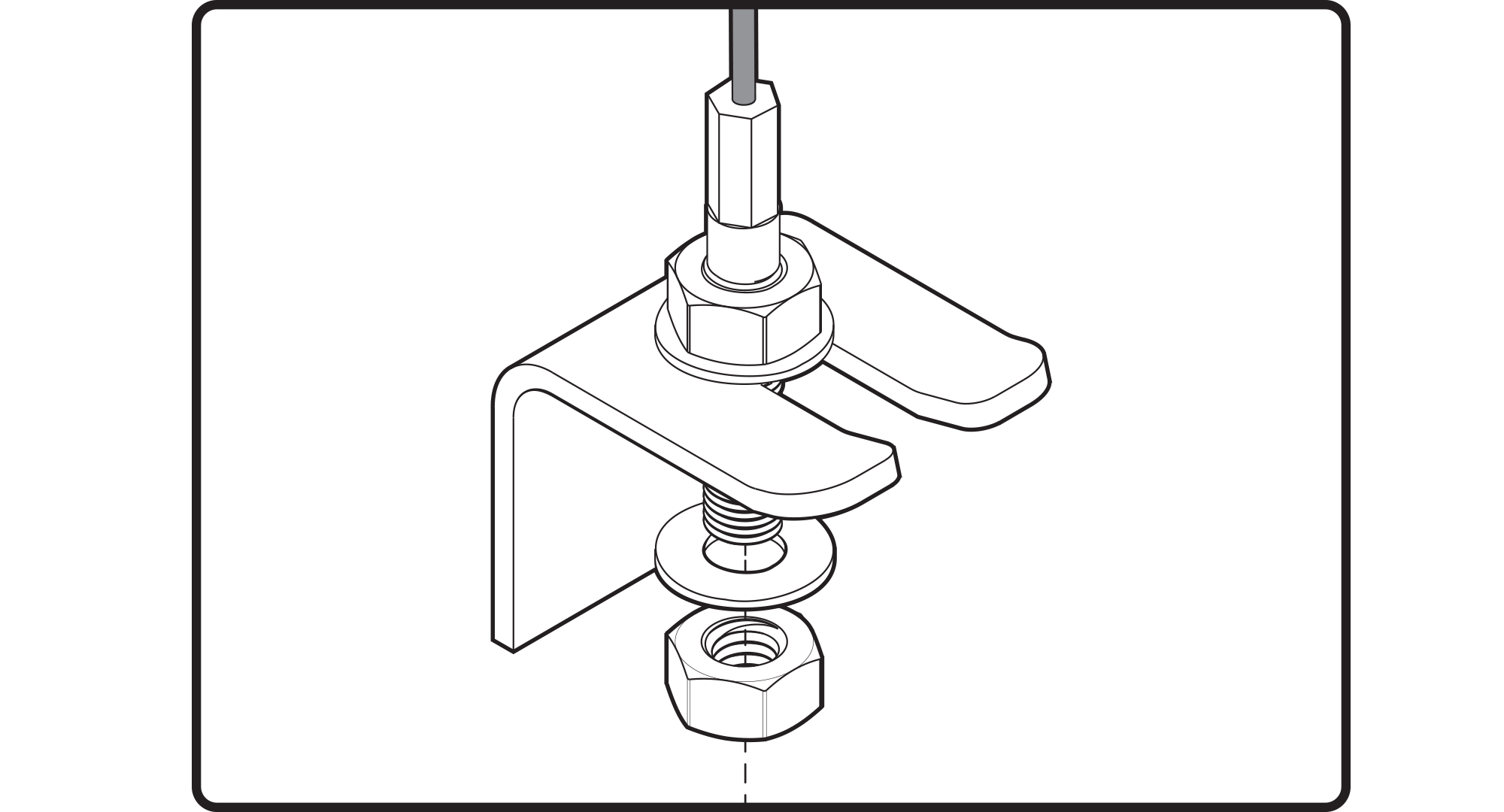

Attach M10 stud at the end of each cable to the brackets on the sides of the indoor unit and fasten securely with the nuts and washers provided.
-
![]()
Insert each cable through a gripper then loop over roofing timber and back down into the gripper. Ensure roofing timber will support the weight.
-
![]()
Pull downward on each cable to lift the indoor unit to final height. To release gripper, push ferrule in and adjust cable length as needed.
“Gamechanger! Wish I’d thought of it…”
— Al Fredo
“Bloody brilliant! Saved me around 40 minutes!”
— Hugh Jasper
“So much easier. Won’t be going back to rod.”
— Jim Dandy
Drain Tray Suspension Kit
The Airsling Drain Tray Suspension Kit is designed to hang a separate drain tray under the indoor unit.
Slide a pair of hang brackets onto each rail and assemble the drain tray. Secure the brackets to the tray with the provided screws. Take the remaining length of cable from the first grippers and feed each cable through a second gripper and then through the top of each hang bracket. Feed each cable back into a gripper then pull on the cables to raise the drain tray beneath the indoor unit. It’s that easy, too!
If you need to adjust the height or slope of the tray, just push in the ferrules and adjust cable lengths as required. With rails and hang brackets made from high-strength galvanised steel, these kits are designed to resist corrosion and will outlast any system.
Available in single packs, 10-packs and 100-packs. Save more, buy bulk!
-
![]()
Ducted indoor
drain tray hanging kit
Air conditioner kit sold separately -
![]()
Feed cable end from the first gripper through a second gripper. Assemble the drain tray and slide each bracket onto opposite ends of each rail.
-
![]()
Feed cable from gripper through rail bracket and back up to the gripper. Secure each bracket to the drain tray with provided screws through bracket pilot hole.
-
![]()
Adjust cable lengths to raise the drain tray into position. To release gripper, push ferrule in and adjust cable length – ensure a slope toward the drain outlet.
